产品展示>>减速机/减速箱 |
Products |
|

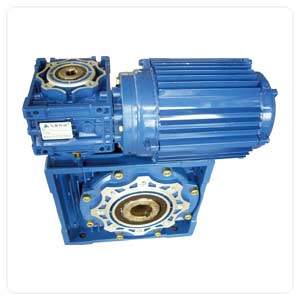

| NMRV40/75双级蜗轮蜗杆减速箱 |
 |
 |
 |

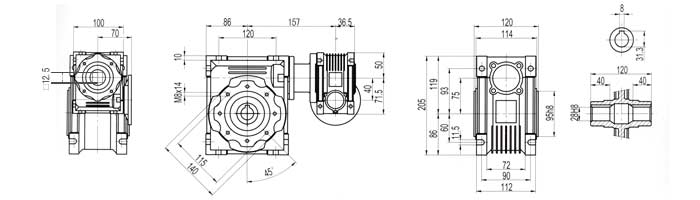

| NMRV40/75双级蜗轮蜗杆减速箱安装尺寸: |
 |
| NMRV40/75双级蜗轮蜗杆减速箱选型参数: |
| 电机功率 KW |
速比 |
输出扭矩 N.m |
输出转速 r/min |
输出转速折算成输出轴转180゜用时s |
| Motor power KW |
Speed ratio |
Output torque N.m |
Output Speed r/min |
Time of output shaft turns 180 degrees(s) |
| 0.55(可选0.37) |
7.5×50 |
800 |
3.73 |
8±1s |
| 7.5×60 |
950 |
3.11 |
10±1s |
| ☆7.5×80 |
1200 |
2.33 |
12±1s |
| 10×50 |
950 |
2.0 |
10±1s |
| 10×60 |
1200 |
2.33 |
12±1s |
| ☆10×80 |
1700 |
1.75 |
16±1s |
| 带☆的因蜗轮齿数较多，机械强度较低，所以不建议选用0.55KW电机 |
| ☆ refers to with more worm wheels, the mechanical strength is low, it is not recommended to use 0.55KW motor. |
| |
 |
